Operating weight: 95 kg
Length: 1090mm
Drill rod diameter: 45 mm
Drill rod length: 500 mm
Flow rate: 20-30L/min
Hydraulic oil pressure: 160 kg/cm³
Vibration frequency: 700-1200 bpm
Stroke energy: 350 Joule

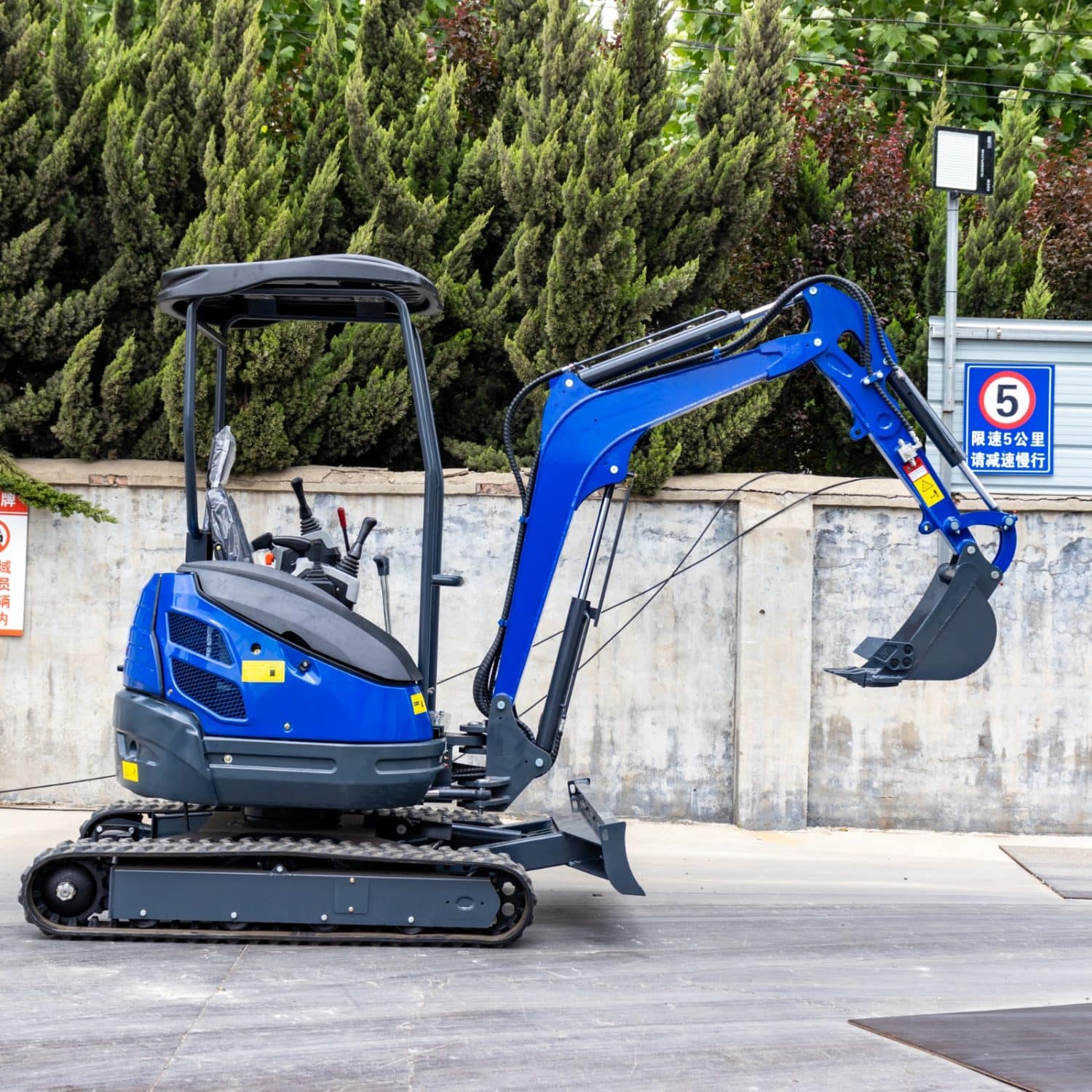

• Engine: Koop 192f engine, diesel, air-cooled
• Drive and rotation motor: LIKE
• Hydraulic pump: TIANJI
• Power: 11.7 HP
• Length: 1140mm
• Max. digging depth: 1220mm
• Max. digging height: 1650mm
• Weight: 800kg
• Dimensions: 2480X722X2000mm
• Track length: 1140mm
• Track width: 150mm
• Max. travel speed: 2 km/h
• Consumption: 2.3 l / h
• Rotation speed: 12 rpm
• Breakout force capacity: 7.5 kN
• Available hydraulic pressure: 160 bar
• Hydraulic flow: 21 l / mn

• Engine: LAIDONG 380 three-cylinder liquid-cooled.
• Drive and rotation motor: TAINUIO or equivalent
• Hydraulic pump: SHIMADZU or equivalent
• Power: 25 HP Diesel
• Length: 1200mm
• Max. digging depth: 2000mm
• Max. digging height: 3396mm
• Maximum unloading height: 1820mm
• Weight: 1300kg
• Dimensions: 3249x1120x2314mm
• Track length: 1503mm
• Track width: 230mm
• Max. travel speed: 1.8 km/h
• Consumption: 2.6 l / h

• Engine: LAIDONG 380 three-cylinder liquid-cooled.
• Drive and rotation motor: TAINUIO or equivalent
• Hydraulic pump: SHIMADZU or equivalent
• Power: 25 HP Diesel
• Length: 1200mm
• Max. digging depth: 2000mm
• Max. digging height: 3396mm
• Maximum unloading height: 1820mm
• Weight: 1300kg
• Dimensions: 3249x1120x2314mm
• Track length: 1503mm
• Track width: 230mm
• Max. travel speed: 1.8 km/h
• Consumption: 2.6 l / h
• Rotation speed: 10 rpm
• Breakout force capacity: 11 kN
• Available hydraulic pressure: 160 bar
• Hydraulic flow: 34 l / mn
• :
• :
